Anti Static Customized Movable Softwall Clean Room

Beijing Silk Road Enterprise Management Services Co.,LTD
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment

Anti Static Customized Movable Softwall Clean Room

  • 1
  • 2

Brand Name : OEM

Certification : CE/ISO9001/ROHS

Place of Origin : China

MOQ : 1 set

Price : Negotiation

Payment Terms : L/C, T/T, Western Union

Supply Ability : 200 Sets per Month

Delivery Time : 7-15 Working days

Packaging Details : Polywood packing

product name : softwall clean room

cleanlines : from class 100-10000

warranty : 2 years

size : customized

floor : PVC/ expoxy floor for cleanroom

usage : pharmaceutical/ lab/hospitcal

wind speed : 0.45m/s for cleanroom

HEPA filter : H11-H14 HEPA Filter

Contact Now

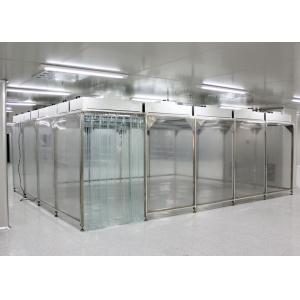

Anti Static Customized Movable Softwall Clean Room

Introduction:

It is for solution when clean air areas need to be created on a small to mid scale, flexible and economical, they may be easily relocated when application requirements change, dimensional and cleanliness class requirement.

Clean Booth provides a very wide variety of standard sizes and cleanliness levels and almost any custom configurations or applications you request.

A soft wall clean booth, made of removable anti-static vinyl strip curtains, is the most cost-effective equipments available for any zone, needing a special filtration.

Clean Booths, which are of a modular build format, allows ease of installation and as a result to provide less downtime.

Clean booths are usually used in dispensing, sampling, and off-loading areas within pharmaceutical, chemical and bio-chemical industries.

The advantages of soft wall clean booth include ease of access and ensuring the clean zone staying within specific cleanliness level need.

Technical Specification:

Ex size (mm)

(W*D*H)

2000X2000X2596
In size (mm) 1900x1900x2205
Purification rank Class10-300,000(FS209E USA)
HEPA filter Efficiency : 99.99% @ 0.3um - 99.999% @ 0.12um (MPPS)
Pre-filter Efficiency : 85% @ 5um
Control system PC control system / promised speed by control box
Pressure Gauge American Dywer pressure
Noise <50-55 dB (test point distance is 1m)

Air velocity

(m3/h)

0.2-0.5m/s Adjustable (test point distance is 30cm)
Frame material stainless steel/steel with power coated/Cast aluminum profile
Wall frame Tempered glass / PVC anti-static curtain (option)
Fan EBM Fan /Taiwan fan/ Domestic fan (option)
Power suppler AC110/220v 50HZ/60HZ

Application


It is used to the workshop area which requires a higher level of internal purification, such as the pipeline work area, high-precision product assembly area, semiconductor industry, biochemistry, medicine and food industry, etc.

OEM
Customized design is available.

Detail:

Modular Cleanroom Frame Material Have Two Choose:

A: Stainless steel 304 : it can resist corrosion and have strong support

B: Aluminum alloy : easy assembly , standard accessories .

Ceiling: Aluminium-plastic material is light at weight, easy to install,

Sandwich board ceiling in ivory white color have excellent thermal insulation property,

More high requirement for large are temperature and humidity so it is best choice for cleanroom

Fan Filter Unit: Adopted excellent energy –saving Centrifugal fan with lower noise and less energy consumption.

Wall: The anti-static acrylic sheet can may lead the surface static electricity to the underground to keep the surface from absorbing dust or fiber.

Control System: We can adopted the PLC control system for control the fan filter unit .this can catch the wind speed, differential pressure, temperature and humidity of laminar flow booth

Application:

E-Cigarette , LCM, CMOS Camera Module , Touch play , Optical module ,Film ,Biological Pharmacy, Packing Food .

Anti Static Customized Movable Softwall Clean Room


Product Tags:

Customized Clean Room Booth



Movable Softwall Clean Room



Anti Static Laminar Flow Booth


Wholesale Anti Static Customized Movable Softwall Clean Room from china suppliers

Anti Static Customized Movable Softwall Clean Room Images
